CAT AP500 Pavers Change Model
Max Engine Power
Standard Paving Range
Operating Weight
Max.Paving Range
About CAT AP500 Pavers

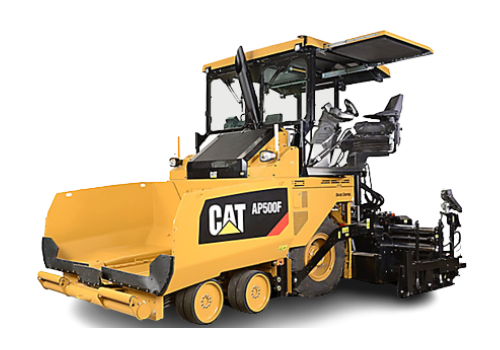

CAT AP500 Paver is one of the best paver in the industry which is manufactured by the heavy construction equipment manufacturing company Caterpillar. The AP500 asphalt paver and SE47 Series screeds are designed for parking lots, rural roads, suburban streets, and many other small to intermediate-type applications. This CAT paver and screed combination provides high throughput capability and application versatility, easy set-up along with a wide paving range.
Price of the CAT AP500 Paver:
You will get this heavy construction model with all the specifications and details here at InfraGaadi platform.
Features of the CAT AP500 Paver:
The CAT AP500 paver comes with a paving range of 2.4m - 5.9m, gross power of the machine is 110 kW and operating weight of the AP500 is 14409 kg. Powerful C4.4 engine in this construction equipment which delivers 110 kW (148 hp) of power that supports increased feeder system capacity and hopper inserts for continuous paving. Tight 90 degree turning capability of CAT AP500 enables the paver to rotate and cover tracks on a return paving pass.
Standard paving range of this construction equipment by Caterpillar is utilizing the SE47 V screed of CAT AP500 is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 6.1 m (20'). Standard paving range utilizing the SE47 FM screed CAT AP500 by caterpillar is 2.4 m - 4.7 m (8' - 15' 6' ') with a maximum width of 6.2 m (20' 6"). Paving depths of this heavy machinery is up to 250 mm (10") which supports aggregate paving applications during the operation.
High-definition, touchscreen displays given in the CAT AP500 by the Caterpillar with adjustable brightness control for all types of lighting conditions including direct sunlight. High-visibility touch screen operating display by CAT with simplified menu structures, short-cut keys, and intuitive graphics help to simplify machine adjustments.
Single-touch functions from the main screen in the display unit of AP500 include vibratory activation, ventilation system, screed heat, washdown system, and accessory panel. Operating displays are able to be tailored to specific language requirements with multiple options available in the machine. Wash-down system, one of the systems in paver includes level indication.
Paver and screed service and repair kits by Caterpillar include all the parts which are necessary to complete specific repairs. Cat genuine parts are manufactured by Caterpillar to precise specifications and designed for optimal performance as well as maximum uptime.
Repair kits are recognised by a single part number to make ordering easy during operation. Select kits are also given by CAT, to be packaged as a kit by the dealer for through the dealer service shop or over the counter purchases.
Ventilation system provided by the CAT, draws fumes from the auger chamber and also redirects them away from the user for a more comfortable working environment. Dual independent consoles available in the CAT AP500 Paver, provide operation from either side of the machine for optimal visibility to edges, curbs, and transverse joints. Dual independent seats in AP500 swing out 40 degrees beyond the platform which gives you good visibility to curbs and obstacles during the operation on the work site.
CAT AP500 Paver FAQ's
Question: What is the basic width of the CAT AP500 Paver by Caterpillar?
Answer: The basic width range of the CAT AP500 Paver by caterpillar is 2.4m - 5.9m.
Question: What is the engine power of the CAT AP500 Paver by Caterpillar?
Answer: The engine power of the CAT AP500 Paver by Caterpillar is 110 kW.
Question: What is the engine model of the CAT AP500 Paver by Caterpillar?
Answer: The engine model of the CAT AP500 Paver by Caterpillar is Cat C4.4.
Question: Who manufactures the CAT AP500 Paver model?
Answer: Caterpillar manufactures the CAT AP500 Paver model.
Question: What is the operating weight of the CAT AP500 Paver by Caterpillar?
Answer: The operating weight of the CAT AP500 Paver by Caterpillar is 14409 kg.
