CAT AP400 Pavers Change Model

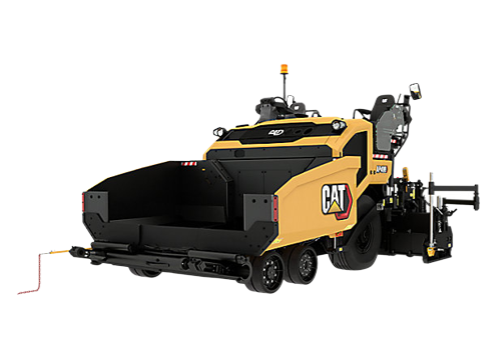

CAT AP400 Paver is one of the best paver in the industry which is manufactured by the heavy construction equipment manufacturing company Caterpillar. The AP400 which is manufactured by CAT is a wheel-type asphalt paver that provides easy transport, a wide paving range, and application versatility which is making it the perfect match for suburban streets, rural roads, parking lots, and many other small to intermediate-type applications.

Price of the CAT AP400 Paver:

You will get this heavy construction model with all the specifications and details here at InfraGaadi platform.

Features of the CAT AP400 Paver:

The CAT AP400 paver comes with a paving range of 2.4m - 5.9m, gross power of the machine is 90 kW and operating weight of the AP400 is 13510 kg. CAT AP400 has the features like, the compact size and small footprint which simplify maneuverability in tight spaces for efficient work in suburban-type applications. Tight 90 degree turning capability of the AP400 enables this amazing paver to rotate and cover tracks on a return paving pass.

Standard paving range of this heavy construction machine is utilizing the SE47 V screed which is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 6.1 m (20') along with this, standard paving range is utilizing the SE47 FM screed which is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 5.9 m (19' 6"). Paving depths of CAT AP400 are up to 250 mm (10") which supports aggregate paving applications.

Caterpillar has given, touchscreen displays, high-definition, with adjustable brightness control for all types of lighting conditions, including direct sunlight. New touch screen operating display given by the Caterpillar with simplified menu structures, intuitive graphics, and short-cut keys help to simplify machine adjustments.

Single-touch functions from the main screen in the CAT AP400 include vibratory activation, ventilation system, screed heat, wash-down system, and the accessory panel. They have also given operating displays that can be tailored to specific language requirements with multiple options which are available in the AP400. Wash-down system, which is important in the paver, includes level indication.

Low truck entry height and short front apron in the CAT AP400 Paver by Caterpillar, enhances material flow while simplifying clean-out. Feeder system design available in the CAT400, with 355 mm (14") diameter augers gives you consistent material flow across the screed for efficient flow at narrow and wide paving widths.

Narrow auger chamber in the CAT AP400 keeps material moving and also helps to eliminate stagnant patches. In this heavy construction machinery, independent control of each material feed sensor while utilizing a cut-off shoe and simply turn off the sensor for manual proportional feed control.

CAT AP400 Paver FAQ's

Question: What is the basic width of the CAT AP400 Paver by Caterpillar?

Answer: The basic width range of the CAT AP400 Paver by caterpillar is 2.4m - 5.9m.

Question: What is the engine power of the CAT AP400 Paver by Caterpillar?

Answer: The engine power of the CAT AP400 Paver by Caterpillar is 90 kW.

Question: What is the engine model of the CAT AP400 Paver by Caterpillar?

Answer: The engine model of the CAT AP400 Paver by Caterpillar is Cat C3.6.

Question: Who manufactures the CAT AP400 Paver model?

Answer: Caterpillar manufactures the CAT AP400 Paver model.

Question: What is the operating weight of the CAT AP400 Paver by Caterpillar?

Answer: The operating weight of the CAT AP400 Paver by Caterpillar is 3510 kg.
